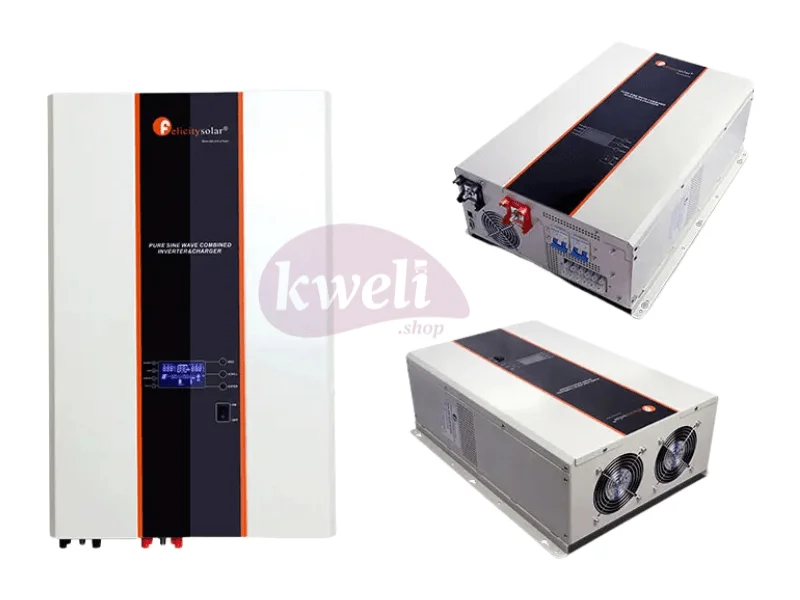

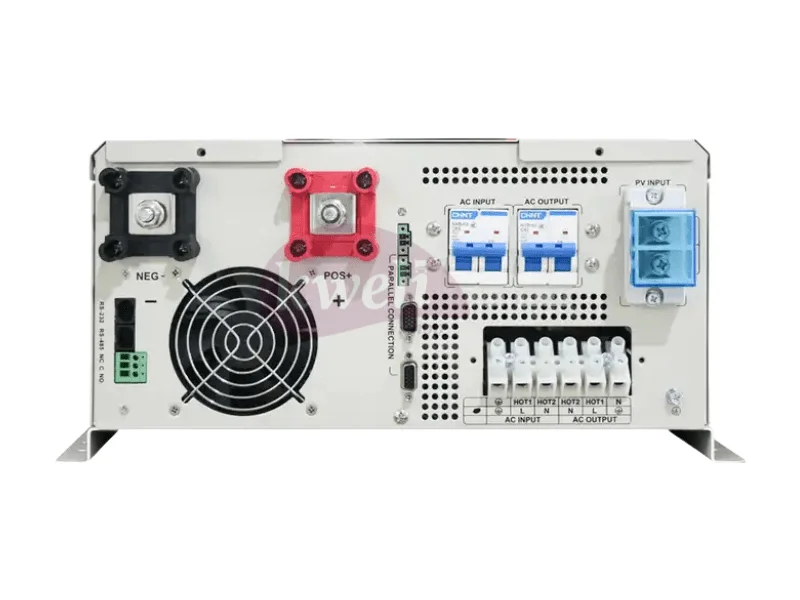

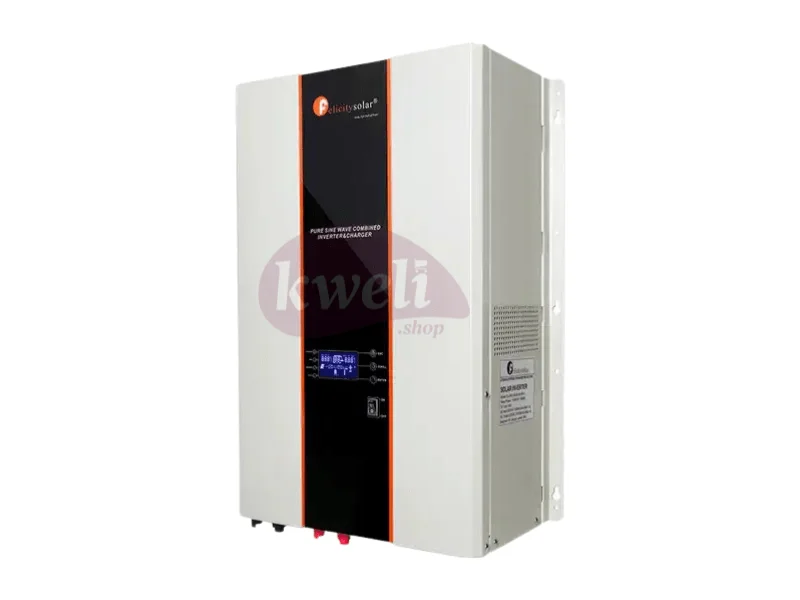

Felicity 10kVA/8kW 48V Pure Sine Wave Inverter IVPM10048
-20%
Felicity Inverters, Inverter-Chargers, Inverters
2-YEAR WARRANTY
Felicity 10kVA/8kW 48V Pure Sine Wave Inverter IVPM10048 with 120A MPPT Solar Charge Controller
Availability:
Out of stock
Felicity 10kVA/8kW 48V Pure Sine Wave Inverter IVPM10048
- Model: IVPM10048
- Max. Load: 8000 watts
- DC Input Voltage: 48V
- AC Output Voltage: 220V
- Output Frequency: 50/60HZ
- Max battery charging current: 80A
- Pure sine wave inverter
- Built-in MPPT solar charge controller 120A
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible with mains voltage or generator power
- Over-Load Protection(SMPS load): Air switch protection
- Output Short Circuit Protection: Air switch protection
- Smart battery charger design for optimized battery performance
- Optional Remote Control Panel available
UGX 5,990,000 UGX 7,490,000
Out of stock
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Hybrid Inverters, Inverters, Luminous Inverters, Solar, Backup & UPS
Luminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 3000W PV Input, 450V Voc, 60-400V MPPT Range, Pure Sine Wave Output
-6%
Hybrid Inverters, Inverters, Luminous Inverters, Solar, Backup & UPSLuminous Rayverter Pro Connect 3KVA/3KW 24V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 3000W PV Input, 450V Voc, 60-400V MPPT Range, Pure Sine Wave Output
Luminous Rayverter Pro Connect 3KVA/3KW 24V Solar Inverter Specifications:
- Rated Power: 3000VA / 3000W
- AC Output Voltage: 230VAC ± 5%
- Output Waveform: Pure Sine Wave
- Frequency Range: 50Hz/60Hz (Auto Sensing)
- Efficiency (Peak): 93%
- Transfer Time:
- 10ms (For Personal Computers)
- 20ms (For Home Appliances)
Battery & Charging:
- Nominal Battery Voltage: 24VDC
- Overcharge Protection: 32VDC
- Maximum AC Charge Current: 100A
- Battery Equalization Function: Yes (Optimizes Battery Performance & Extends Lifecycle)
MPPT Solar Charge Controller:
- MPPT Charge Controller Type: MPPT
- Maximum PV Input Power: 3000W
- MPPT Voltage Range: 60-400VDC
- Maximum PV Open Circuit Voltage (Voc): 450VDC
- Maximum PV Input Current: 100A
- Maximum Solar Charge Current: 80A
Input & Protection:
- Selectable Voltage Range:
- 90-280VAC (For Home Appliances)
- 170-280VAC (For Personal Computers)
- Surge Power: 6000VA
- Protection Features:
- Overload Protection
- Short Circuit Protection (Air Switch Protection)
- Built-in Anti-Dust Kit
Design & Usability:
- Cooling System: Air Cooling
- Communication Interface: RS232 / RS485 (Optional WiFi)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
- Humidity: 5% to 95% Relative Humidity (Non-Condensing)
- Dimensions (D × W × H): 110 × 288 × 390 mm
- Net Weight: 7.2 kg
SKU: n/a -
Felicity Inverters, Hybrid Inverters, Inverter-Chargers, Inverters
Felicity 8kVA/8kW 48V Hybrid Inverter IVEM8048; 8kWp/500Voc/90-450V Built-in Dual MPPT Charge Controllers, Battery Charger, Pure Sine Wave Output, High-Frequency Design
-26%
Felicity Inverters, Hybrid Inverters, Inverter-Chargers, InvertersFelicity 8kVA/8kW 48V Hybrid Inverter IVEM8048; 8kWp/500Voc/90-450V Built-in Dual MPPT Charge Controllers, Battery Charger, Pure Sine Wave Output, High-Frequency Design
Felicity 8kVA/8kW 48V Hybrid Inverter IVEM8048
- Model: IVEM8048
- Rated Output Power (VA): 8,000VA
- Rated Output Power (W): 8,000W
- Nominal DC Input Voltage: 48V
- Nominal Output Voltage: 230Vac ± 5%
- Nominal Input Voltage: 230Vac
- Max AC Input Voltage: 280Vac
- Output Frequency: 50Hz / 60Hz (Auto-detection)
- Output Waveform: Pure Sine Wave
- Efficiency (Line Mode): >95% (Rated load, battery fully charged)
- Peak Efficiency: 93%
- Parallel Capability: Yes, up to 6 units
- Pass-Through Without Battery: Yes
Solar Charging & Grid Charging:
- Maximum PV Open Circuit Voltage (Voc): 500V
- PV Voltage Working Range: 90V – 450V
- Max Input Power: 8,000W (5,000W for single PV input)
- Max Solar Charging Current: 150A
- Max Charging Current (PV + Grid): 150A
- Max Input Current: 20A × 2 (Max 40A)
- Min Startup Voltage: 90V
Utility Charging Mode Specifications:
- Input Voltage Range: 90–280Vac
- Overcharge Protection: Yes
Design and Usability:
- Operating Temperature: 0°C to 55°C
- Storage Temperature Range: -15°C to 60°C
- Cooling System: Intelligent fan cooling
- Protection Index: IP21 (Indoor use)
- Net Weight: 23.7kg
- Product Dimensions (DWH): 607 x 406 x 141mm
- Package Dimensions (DWH): 712 x 582 x 259mm
SKU: n/a -
Inverters, Inverters Only (DC-AC), Victron Phoenix Inverters
Victron Energy Phoenix Inverter 2000VA 12V Smart 230V; Pure Sinewave Inverter, Bluetooth, Metal Casing
-27%
Inverters, Inverters Only (DC-AC), Victron Phoenix InvertersVictron Energy Phoenix Inverter 2000VA 12V Smart 230V; Pure Sinewave Inverter, Bluetooth, Metal Casing
Victron Energy Phoenix Inverter 2000VA 12V Smart 230V
The Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested inverter platform, it has a slimmer design and a full metal casing. Models are available in 1600VA, 2000VA, 3000VA, and 5000VA for 12, 24, or 48V systems.
It’s powerful enough to supply the most common plug-in appliances in your car, boat, caravan, or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high-quality sine-wave.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in and makes setting up your high-power inverter easier.
Configure alarms, alarm relays, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.SKU: n/a -
Inverters, Inverters Only (DC-AC), Solar, Backup & UPS, Victron Phoenix Inverters

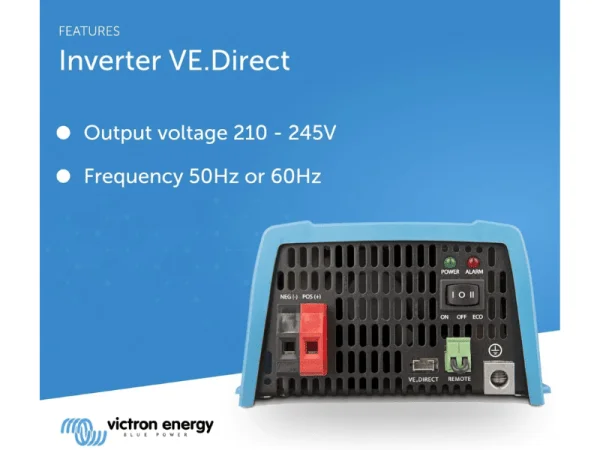

Victron 375VA 12V Phoenix Inverter VE.Direct; Pure Sine Wave, 300W Continuous Power, 700W Peak, ECO Mode, Remote On/Off, Bluetooth Monitoring Option
