MPPT Charge controllers, Solar Charge Controllers

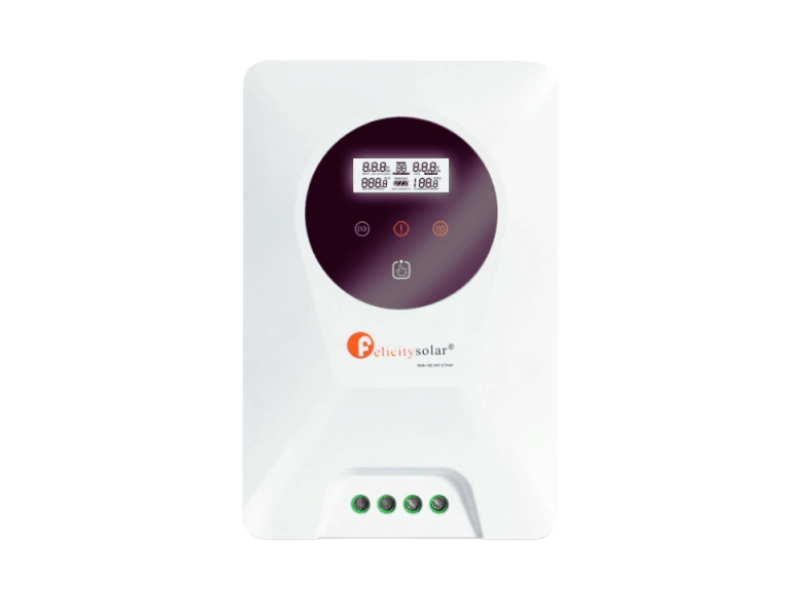

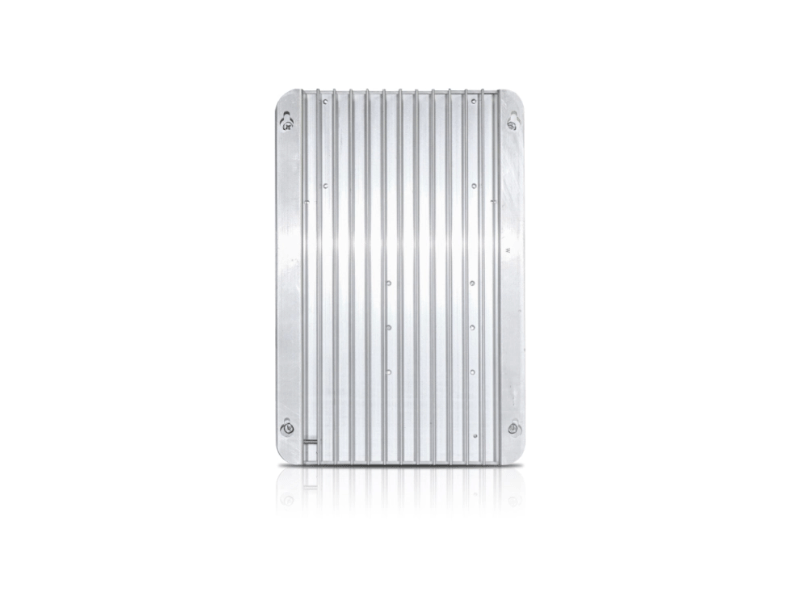

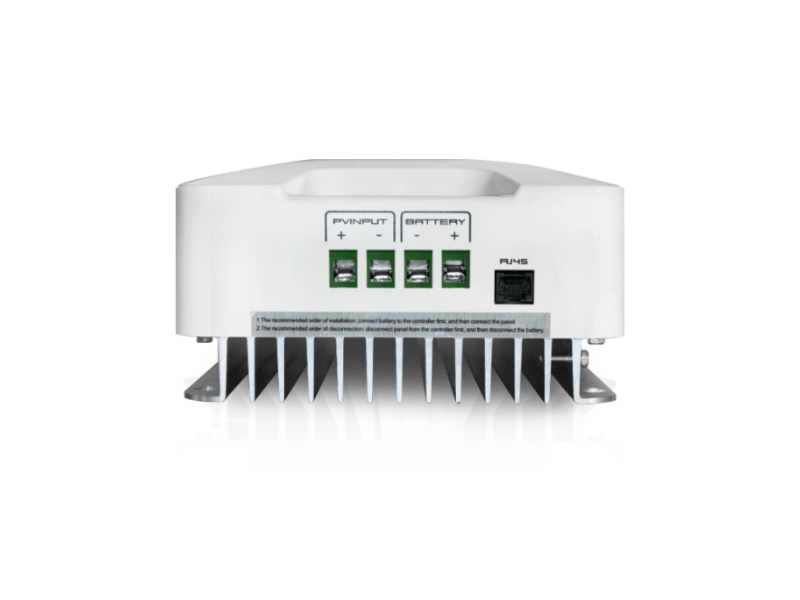

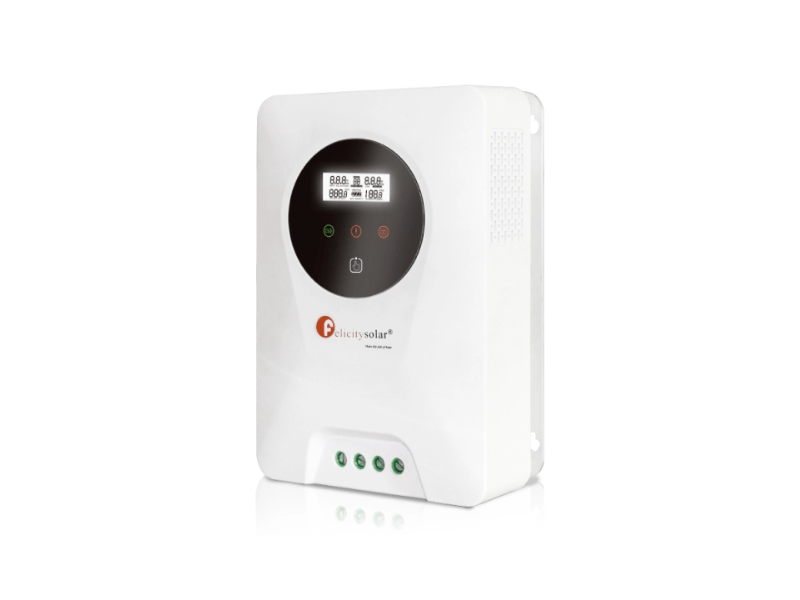

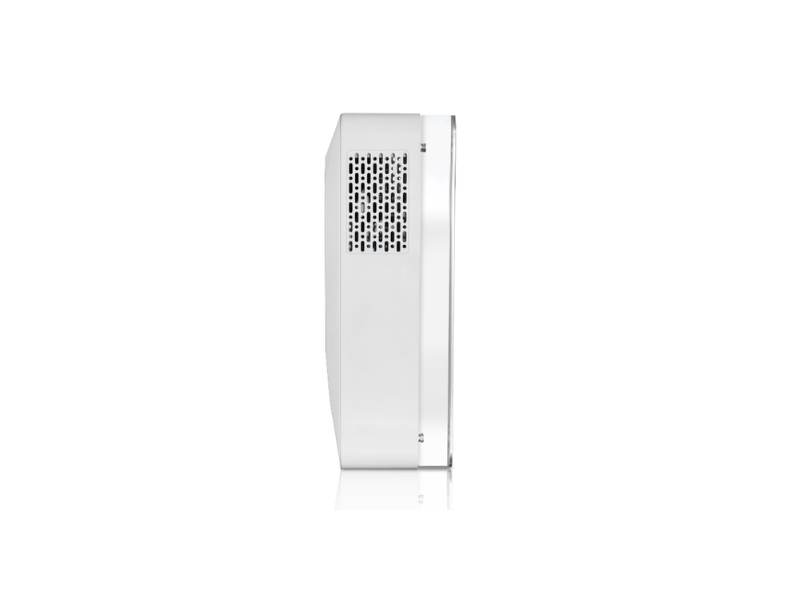

Felicity 100A 48V MPPT Solar Charge Controller SCCM10048; 195V/100A, up to 5,500Wpv @ 48V, 2750Wpv @24V, 1375Wpv @12V
Felicity 100A 48V MPPT Solar Charge Controller SCCM10048
- System voltage: 12V/24V/48/(Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V/48V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 100A
- Max PV Input Power @12V = 1375W,
- Max PV Input Power @24V = 2750W,
- Max PV Input Power @48V = 5500W
- PV Array MPPT Vol Range: 15V-170V/ 30-170V/ 60-170V
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 7kg
UGX 949,000 UGX 1,190,000
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
-24%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can
-
Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
-
Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
-
High Efficiency: No cooling fan is required; efficiency exceeds 98%.
-
Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
-
Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
-
Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
-
Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
-
Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
-
Programmable Relay: Allows for custom alarms or event-triggered actions.
-
Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
SKU: n/a -
-
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 100/30; 100V 30A 12/24V Charge Controller with Bluetooth
-30%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 100/30; 100V 30A 12/24V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 100/30
- Rated Charge Current: 30 A,
- Maximum PV Open Circuit Voltage: 100 V
- Ultra-fast MPPT: Improves energy harvest by up to 30% compared to PWM controllers.
- Advanced MPPT Detection: Maximises energy harvest even in partial shading conditions.
- High Efficiency: Features an outstanding conversion efficiency of over 98% without the need for a cooling fan.
- Flexible Charge Algorithm: Fully programmable with multiple pre-set algorithms.
- Extensive Protection: Includes over-temperature, PV short circuit, PV reverse polarity, and reverse current protection.
- Bluetooth Smart Built-in: Allows for wireless setup, monitoring, updates, and synchronisation.
- VE.Direct Port: For wired connections to various devices.
- Battery Recovery Function: Can initiate charging for batteries discharged to zero volts and reconnect to fully discharged Li-ion batteries.
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
-33%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can
- Rated charge current: 100A
- Maximum PV Open Circuit Voltage: 250V
- Ultra-fast Maximum Power Point Tracking (MPPT): Improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Advanced Maximum Power Point Detection in case of partial shading conditions: The innovative SmartSolar algorithm will always maximise energy harvest by locking to the optimum MPP.
- Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 99%.
- Flexible charge algorithm: Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch.
- Extensive electronic protection: over-temperature protection and power derating when the temperature is high, PV short circuit and PV reverse polarity protection, and PV reverse current protection.
- Bluetooth Smart built-in: The wireless solution to set up, monitor, update, and synchronise SmartSolar Charge Controllers.
- Internal temperature sensor and optional external battery voltage, temperature, and current sensing via Bluetooth: A Smart Battery Sense, a BMV-712 Smart Battery Monitor, or a SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
- VE.Direct or VE.Can: For a wired data connection to a Colour Control GX, other GX products, PC, or other devices.
- Synchronized parallel charging with VE.Can or Bluetooth: Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth.
- Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. will reconnect to a fully discharged Li-ion battery with an integrated disconnect function.
- Remote on-off: To connect, for example, to a VE.BUS BMS.
- Programmable relay: can be programmed to trip on an alarm or other events.
- Optional: SmartSolar pluggable LCD display.
SKU: n/a -
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT RS 450/100 – Tr Isolated; 450V/100A 48V Charge Controller with Bluetooth
-7%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT RS 450/100 – Tr Isolated; 450V/100A 48V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT RS 450 100 – Tr
- Rated charge current: 100 amps
- Maximum PV Open Circuit Voltage: 450 volts
- Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 100 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required. - Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
- Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
- Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
- Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
- Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
- PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
- VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
- I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with an allow-to-charge signal.
SKU: n/a
