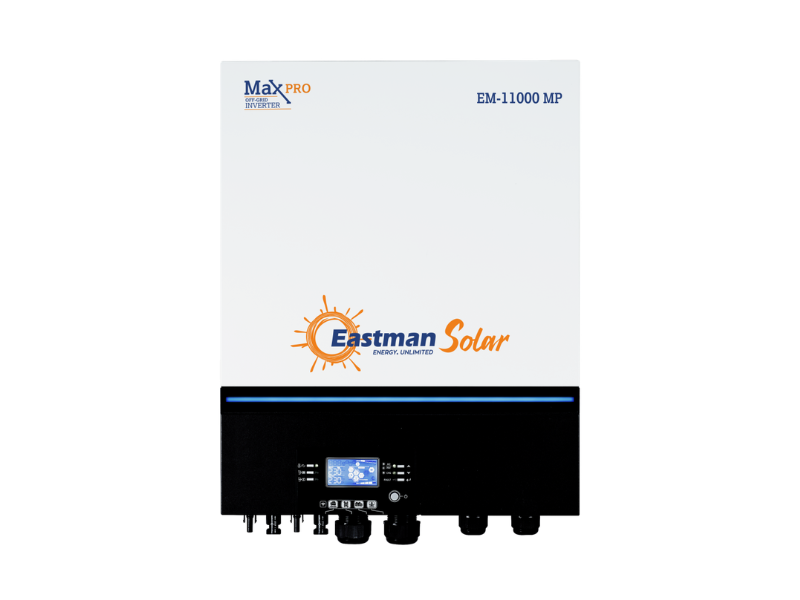

Eastman Max PRO 11kW/11kVA 48V Off-Grid Solar Inverter/Charger EM-11000 MP; 11kW PV Input, 500V PV Voc, 90-450V MPPT, 150A Charging, Wi-Fi

Eastman Max PRO 11kW/11kVA 48V Off-Grid Solar Inverter/Charger EM-11000 MP

• Model: EM-11000 MP
• Rated output: 11,000VA / 11,000W
• Battery system voltage: 48VDC
• Maximum PV array power: 11,000W (5,500W × 2)
• MPPT operating range: 90-450VDC
• Maximum PV open-circuit voltage: 500VDC
• Maximum solar / AC / combined charge current: 150A
• Surge power: 22,000VA
• Pure sine wave output with 230VAC ±5% battery-mode regulation
• Built-in Wi-Fi, BMS communication port and parallel operation up to 6 units

The Eastman Solar Max PRO EM-11000 MP is an 11kW/11kVA 48V off-grid solar inverter/charger designed for high-capacity residential and commercial backup and solar-power systems. It combines a pure sine wave inverter, high-voltage MPPT solar charger, AC charger, battery integration and utility or generator input in one unit.

Its 11kW PV input is split across two 5.5kW PV sections, with a 90-450VDC MPPT operating window and 500VDC maximum PV open-circuit voltage. The inverter can operate with or without a battery where the application permits, includes built-in Wi-Fi for monitoring, and supports parallel operation of up to six units.

Best For

• Large homes and offices requiring high-capacity backup power
• Off-grid and grid-assisted solar systems
• Sites using utility mains or generator as AC backup
• Systems requiring up to 11kW of PV input
• Expandable installations using parallel inverter operation

• Model: EM-11000 MP
• Series: Eastman Solar Max PRO
• Rated power: 11,000VA / 11,000W
• AC input voltage: 230VAC
• Selectable AC input range: 170-280VAC for computers; 90-280VAC for home appliances
• Input frequency: 50Hz / 60Hz auto-sensing
• AC output regulation in battery mode: 230VAC ±5%
• Output waveform: Pure sine wave
• Surge power: 22,000VA
• Peak efficiency: 93%
• Transfer time: 10ms for personal computers; 20ms for home appliances
• No-load power consumption: <70W
• Battery voltage: 48VDC
• Float charging voltage: 54VDC
• Overcharge protection: 63VDC
• Solar charger type: MPPT
• Maximum PV array power: 11,000W (5,500W × 2)
• MPPT operating range: 90-450VDC
• Maximum PV array open-circuit voltage: 500VDC
• Maximum solar charge current: 150A
• Maximum AC charge current: 150A
• Maximum combined charge current: 150A
• Parallel capability: Up to 6 units
• Communication: USB, RS232, RS485, Wi-Fi and dry contact
• Lithium battery compatible with reserved BMS communication port
• Built-in Wi-Fi with mobile-app monitoring
• Detachable display
• Battery-independent operation supported
• Utility mains or generator input supported
• Dimensions (D × W × H): 147.4 × 432.5 × 553.6mm
• Net weight: 18.4kg
• Operating temperature: -10°C to 50°C
• Relative humidity: 5-95%, non-condensing
• Safety compliance: CE

Designed around a 48V battery bank and compatible with supported lead-acid and lithium battery systems. For lithium installations, confirm the battery BMS protocol and communication configuration before commissioning. PV strings must remain within the 90-450V MPPT operating range and below the 500V maximum PV open-circuit voltage under all site temperature conditions.

• This is a 48V inverter, so size the battery bank and DC protection for the high currents associated with an 11kW inverter.
• Keep PV string Voc below 500VDC under the coldest expected site conditions and within the 90-450V MPPT operating range during normal operation.
• Confirm generator or utility input capacity where AC charging or bypass operation will be used.
• For parallel systems, use the manufacturer-approved parallel configuration and protection arrangement.
