Deye BOS-G Pro 5.12kWh 51.2V LiFePO₄ High-Voltage Battery Module BOS-G-Pack5.1; 100Ah, 100A Charge/Discharge, 120A Peak, IP20, Rack-Mounted

• 5.12kWh LiFePO₄ high-voltage battery module.
• 51.2V nominal module voltage and 100Ah capacity.
• 100A nominal charge/discharge current.
• 120A peak discharge current.
• Standard 19-inch rack-mount design.
• IP20 enclosure.
• CAN2.0 / RS485 system communication through BOS-G Pro control architecture.
• 46kg module weight.
• Designed for series connection in BOS-G Pro high-voltage battery systems.
• Requires BOS-G-PDU-2 and an approved BOS-G Pro rack/system configuration.

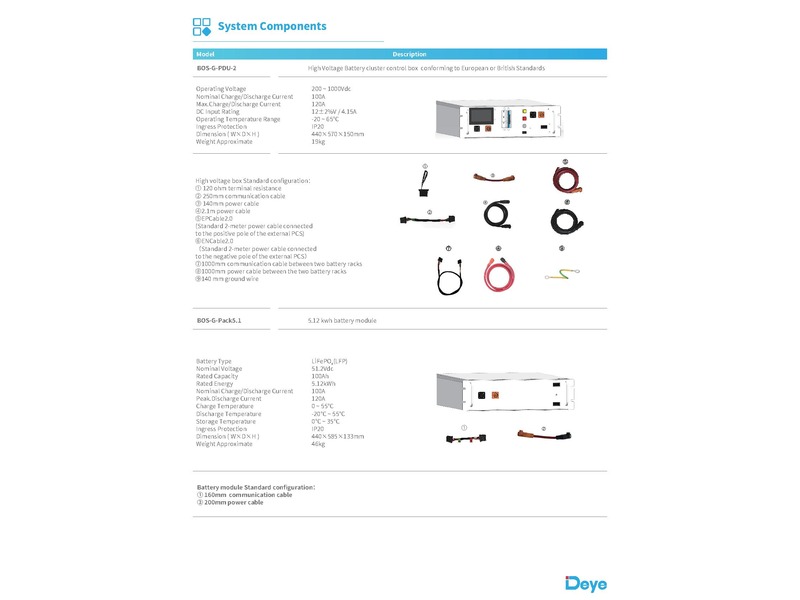

The Deye BOS-G-Pack5.1 is the 5.12kWh battery module used in BOS-G Pro high-voltage rack-mounted energy-storage systems. Modules are installed in series and managed through the BOS-G-PDU-2 high-voltage control box.

• Model: BOS-G-Pack5.1
• Chemistry: LiFePO₄
• Nominal Energy: 5.12kWh
• Nominal Voltage: 51.2Vdc
• Capacity: 100Ah
• Nominal Charge/Discharge Current: 100A
• Peak Discharge Current: 120A
• Ingress Protection: IP20
• Dimensions: 440 × 585 × 133mm
• Weight: approx. 46kg

System Requirements

This is a high-voltage battery module, not a standalone 51.2V battery. BOS-G Pro systems require multiple modules connected in series together with the BOS-G-PDU-2 control box and a compatible rack.
