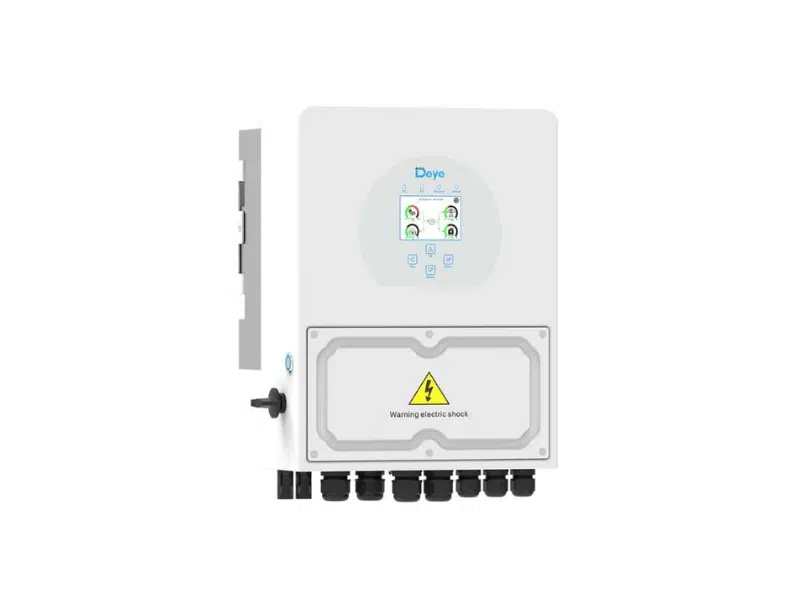

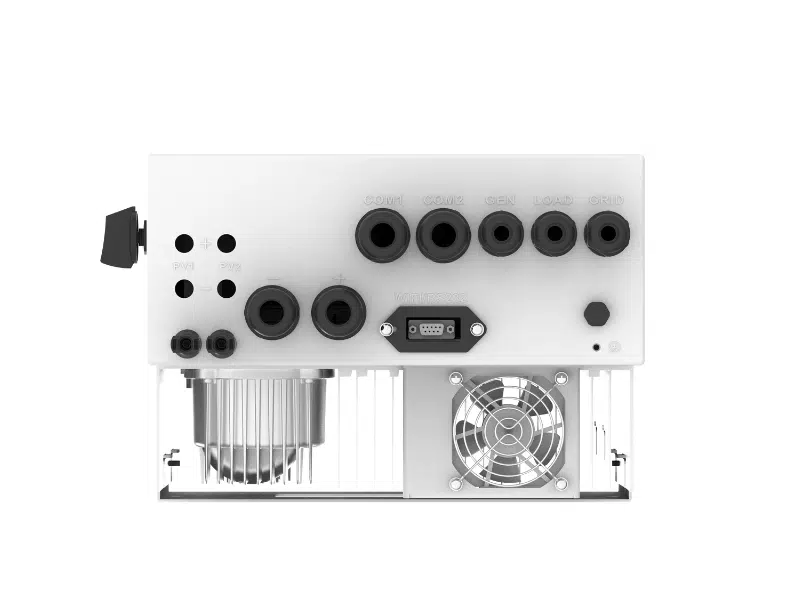

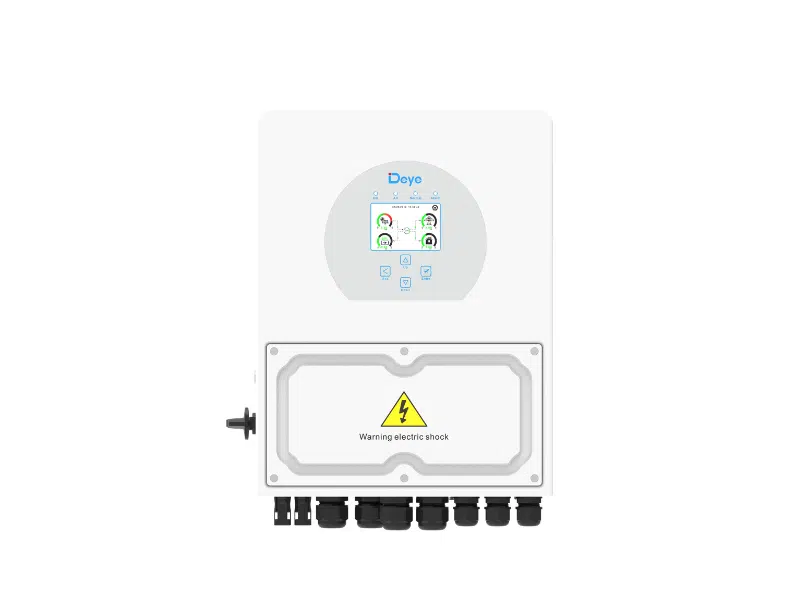

Deye 5kVA/5kW 48V Single Phase Hybrid Inverter SUN-5K-SG04LP1-EU; 2 MPPT, 10kWp/8kWp PV Access/Input, 500Vdc, 150–425V MPPT Range, 120A Charge/Discharge, WiFi/4G Monitoring, IP65

Deye 5kVA/5kW 48V Single Phase Hybrid Inverter SUN-5K-SG04LP1-EU highlights

• 5kW single-phase hybrid inverter for residential and small business systems.
• Dual MPPT design for flexible solar array configuration.
• 10kWp PV access capacity with 8kWp maximum DC input power.
• 120A maximum battery charge and discharge current.
• 48V battery system compatible with lithium-ion and lead-acid batteries.
• 500Vdc maximum PV input voltage.
• 150–425V MPPT operating range.
• Parallel capability up to 16 units.
• Generator integration and AC coupling support.
• IP65-rated enclosure for indoor and outdoor installation.

Deye 5kVA/5kW 48V Single Phase Hybrid Inverter SUN-5K-SG04LP1-EU Datasheet

• Battery Type: Lithium-ion or Lead-acid
• Battery Voltage Range: 40–60V
• Max Charging Current: 120A
• Max Discharging Current: 120A
• Charging Strategy: Self-adaptive to BMS
• Number of Battery Inputs: 1

PV / Solar Input Specifications

• Max PV Access Power: 10,000W
• Max PV Input Power: 8,000W
• Max PV Input Voltage: 500Vdc
• Start-up Voltage: 125V
• MPPT Voltage Range: 150–425V
• Rated PV Input Voltage: 370V
• MPPT Trackers: 2
• Strings per MPPT: 1 + 1
• Max Operating PV Input Current: 13 + 13A
• Max Input Short Circuit Current: 17A

AC Output Specifications

• Rated Output Power: 5,000W
• Max Apparent Power: 5,500VA
• Rated Output Voltage: 220/230V (Single Phase)
• Rated Frequency: 50/60Hz
• Max Continuous AC Passthrough: 35A
• Peak Power (Off-grid): 2× rated power for 10 seconds
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging

Hybrid & System Integration

• Supports solar, battery, grid and generator integration
• Stores energy from diesel generator
• AC coupling support for retrofitting existing solar systems
• Parallel operation up to 16 units
• Six programmable battery charge and discharge time periods

Protection & General Specifications

• Ingress Protection Rating: IP65
• Surge Protection: Type II (DC and AC)
• Anti-islanding protection
• DC reverse polarity protection
• AC overcurrent and short-circuit protection
• Residual current detection
• Cooling Method: Natural Cooling
• Noise Level: <45 dB
• Operating Temperature Range: -40°C to +60°C
• Permissible Altitude: Up to 2000m
• Weight: 17kg
• Dimensions: 330 × 433 × 228 mm
