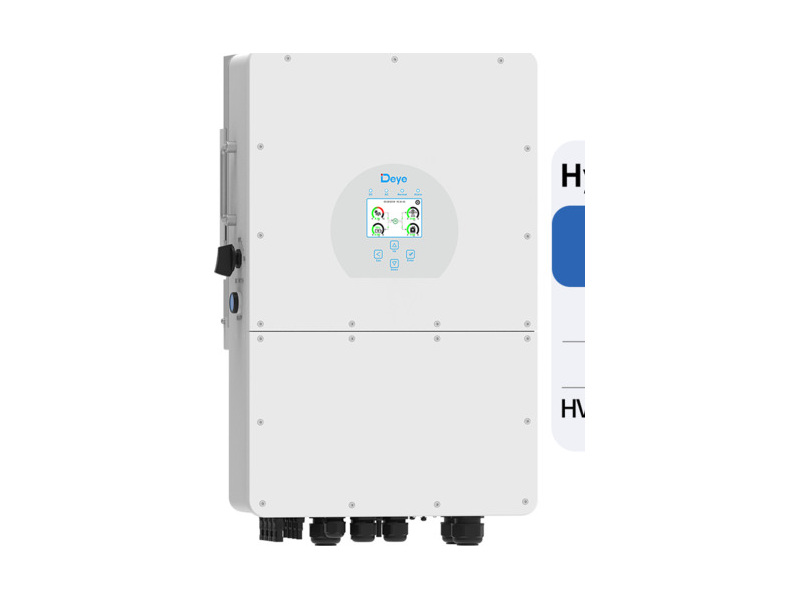

Deye 20kW High-Voltage Three-Phase Hybrid Solar Inverter SUN-20K-SG01HP3-EU-AM2; 32kW PV Input/40kWp Access, 1000V Voc, 150–850V MPPT, Dual MPPT, 26A + 26A PV Input, 50A Battery Charge/Discharge, IP65

• Rated AC output: 20kW
• Battery system: High-voltage lithium (160–700V)
• Phase: Three-phase
• Maximum PV input power: 32kW
• Maximum PV access power: 40kWp
• Maximum PV open-circuit voltage: 1000V
• MPPT operating range: 150–850V
• Maximum PV operating current: 26A + 26A
• MPPT trackers: 2
• Battery voltage range: 160–700V

Deye 20kW High-Voltage Three-Phase Hybrid Solar Inverter SUN-20K-SG01HP3-EU-AM2 integrates solar PV input, battery storage and AC power conversion for appropriately sized power systems.

General Specifications

• Rated AC output: 20kW
• Battery system: High-voltage lithium (160–700V)
• Phase: Three-phase

Solar PV Input

• Maximum PV input power: 32kW
• Maximum PV access power: 40kWp
• Maximum PV open-circuit voltage: 1000V
• MPPT operating range: 150–850V
• Maximum PV operating current: 26A + 26A
• MPPT trackers: 2

Battery & Charging

• Battery voltage range: 160–700V
• Maximum battery charging current: 50A
• Maximum battery discharging current: 50A

AC Input & Output

• Rated AC supply: 230/400V three-phase

Key Functions

• IP65
• Grid-interactive hybrid
• Generator storage support

Confirm PV open-circuit voltage, MPPT range, PV array capacity and maximum PV input current for the actual site and string layout. Check battery voltage, charging/discharging current, AC wiring and protective devices against the manufacturer manual before installation.
