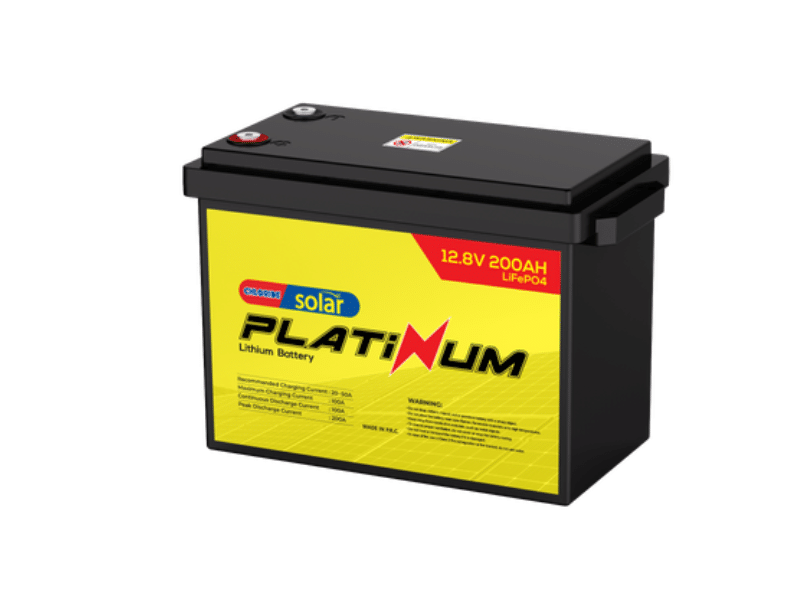

Chloride Solar Platinum 200Ah 12.8V 2.56kWh Lithium Iron Phosphate (LiFePO₄) Solar Battery CS-2560 PSE; Built-in BMS, Over 3,000 Cycles @25°C, 80% DoD, IP65 Rated

Chloride Solar Platinum 200Ah 12.8V 2.56kWh Lithium

• Model: CS-2560 PSE
• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Charge Voltage: 14.6V
• Max Charge Current: 100A
• Max Continuous Discharge Current: 200A
• Peak Discharge Current (5 sec): 250A
• Minimum Discharge Voltage: 10.4V
• Cycle Life: Over 3000 cycles @80% DoD
• Weight: 20kg
• Dimensions (L x W x H): 386 x 206 x 273 mm
• IP Rating: IP65 (Dustproof and Water-resistant)
• Operating Temp (Charging): 0°C to 45°C
• Operating Temp (Discharging): -20°C to 55°C
• Storage Temp: -10°C to 35°C
• Relative Humidity: 0–95% (Non-condensing)
• Safety Certificates: CE (IEC 62040), MSDS
• Transport Certification: UN3480
• Integrated BMS: Yes (with protections for over/under voltage, temperature, short circuit, etc.)
