TBB Solar Inverters
Showing all 5 resultsSorted by price: high to low
-
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar Inverters

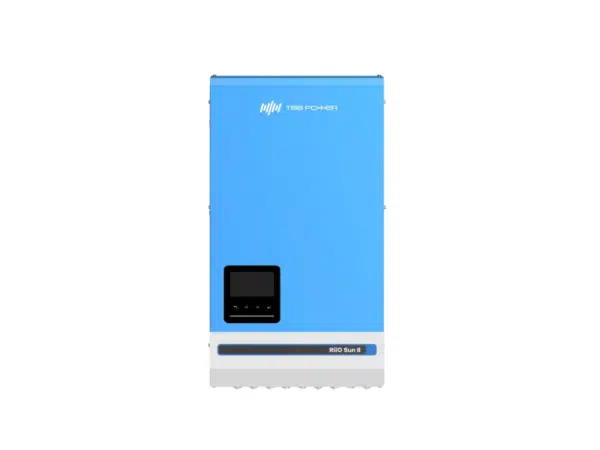

TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design
-14%
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar InvertersTBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design
TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter
General Specifications:
- Nominal Battery Voltage: 48V
- Continuous Output Power: 6,000 VA (6kVA)
- Maximum Output Power: 6,000 W
- Peak Power: 9,000 W (150%)
- Surge Capacity: 18,000 W (300%)
- AC Output Voltage: 220/230/240V ± 2%
- AC Output Frequency: 50/60 Hz ± 0.1%
- Harmonic Distortion: <2%
- Load Power Factor: 1.0
MPPT Solar Charge Controller:
- Maximum PV Open Circuit Voltage (Voc): 250V
- MPPT Voltage Range: 120–250V
- Number of MPPT Trackers: 2
- Maximum PV Input Current per Tracker: 36A
- Maximum PV Short Circuit Current per Tracker: 40A
- Maximum PV Input Power: 8,800 W (4,400 W per tracker)
- MPPT Efficiency: 98%
Charger:
- Charge Voltage: Absorption: 57.6V, Float: 55.2V
- Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
- Maximum AC Charge Current: 100A
- Temperature Compensation: Yes
Additional Features:
- Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
- Transfer Time: 2ms (<15ms in weak AC source mode).
- Efficiency: 94% inverter efficiency.
Design and Usability:
- Cooling: Forced fan
- Protection Index: IP21
- Dimensions: 570 x 310 x 154 mm
- Net Weight: 25 kg
- Operating Temperature: -20°C to 65°C
- Relative Humidity: 95% (non-condensing)
SKU: n/a -
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar Inverters

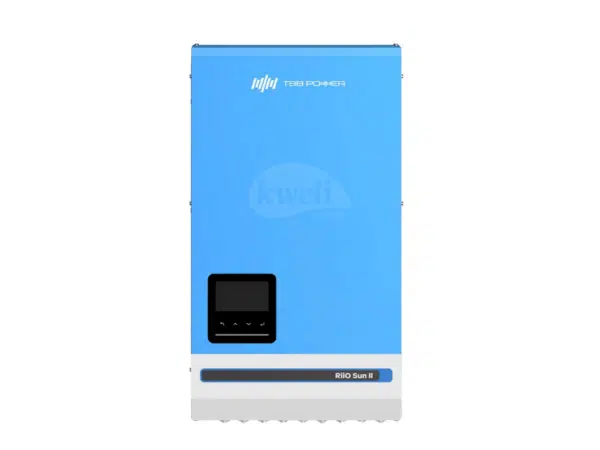

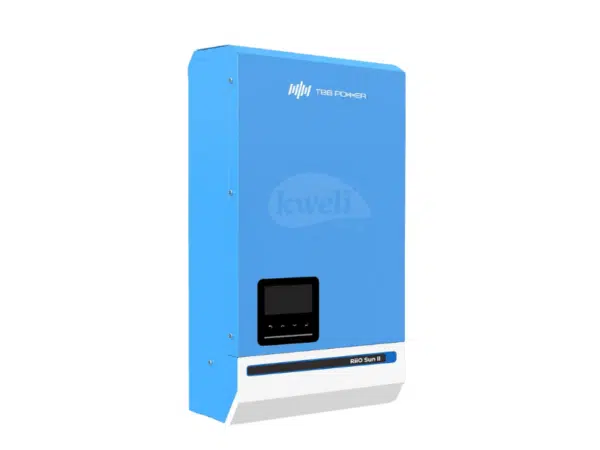

TBB RiiO Sun II 5kVA/5kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
-6%Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar InvertersTBB RiiO Sun II 5kVA/5kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
TBB RiiO Sun II 5kVA/5kW 48V All-in-One Solar Inverter
General Specifications:
- Nominal Battery Voltage: 48V
- Continuous Output Power: 5,000 VA (5kVA)
- Maximum Output Power: 5,000 W
- Peak Power: 7,500 W (150%)
- Surge Capacity: 15,000 W (300%)
- AC Output Voltage: 220/230/240V ± 2%
- AC Output Frequency: 50/60 Hz ± 0.1%
- Harmonic Distortion: <2%
- Load Power Factor: 1.0
MPPT Solar Charge Controller:
- Maximum PV Open Circuit Voltage (Voc): 250V
- MPPT Voltage Range: 120–250V
- Number of MPPT Trackers: 2
- Maximum PV Input Current per Tracker: 36A
- Maximum PV Short Circuit Current per Tracker: 40A
- Maximum PV Input Power: 8,800 W (4,400 W per tracker)
- MPPT Efficiency: 98%
Charger:
- Charge Voltage: Absorption: 57.6V, Float: 55.2V
- Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
- Maximum AC Charge Current: 100A
- Temperature Compensation: Yes
Additional Features:
- Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
- Transfer Time: 2ms (<15ms in weak AC source mode).
- Efficiency: 94% inverter efficiency.
Design and Usability:
- Cooling: Forced fan
- Protection Index: IP21
- Dimensions: 570 x 310 x 154 mm
- Net Weight: 25 kg
- Operating Temperature: -20°C to 65°C
- Relative Humidity: 95% (non-condensing)
SKU: n/a -
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar Inverters
TBB RiiO Sun II 3kVA/3kW 48V All-in-One Solar Inverter; Built-in MPPT Charge Controller (5.2kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design
-16%
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar InvertersTBB RiiO Sun II 3kVA/3kW 48V All-in-One Solar Inverter; Built-in MPPT Charge Controller (5.2kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design
TBB RiiO Sun II 3kVA/3kW 48V All-in-One Solar Inverter
General Specifications:
- Nominal Battery Voltage: 48V
- Continuous Output Power: 3,000 VA (3kVA)
- Maximum Output Power: 3,000 W
- Peak Power: 6,000 W
- Surge Capacity: 9,000 W (300%)
- AC Output Voltage: 220/230/240V ± 2%
- AC Output Frequency: 50/60 Hz ± 0.1%
- Harmonic Distortion: <2%
- Load Power Factor: 1.0
MPPT Solar Charge Controller:
- Maximum PV Open Circuit Voltage (Voc): 250V
- MPPT Voltage Range: 120–250V
- Maximum PV Input Current: 36A
- Maximum PV Short Circuit Current: 40A
- Maximum PV Input Power: 5,200 W (5.2kWp)
- MPPT Efficiency: 98%
Charger:
- Charge Voltage: Absorption: 57.6V, Float: 55.2V
- Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
- Maximum AC Charge Current: 60A
- Temperature Compensation: Yes
Additional Features:
- Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
- Transfer Time: 2ms (<15ms in weak AC source mode).
- Efficiency: 94% inverter efficiency.
Design and Usability:
- Cooling: Forced fan
- Protection Index: IP21
- Dimensions: 499 x 272 x 144 mm
- Net Weight: 18 kg
- Operating Temperature: -20°C to 65°C
- Relative Humidity: 95% (non-condensing)
SKU: n/a -
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar Inverters

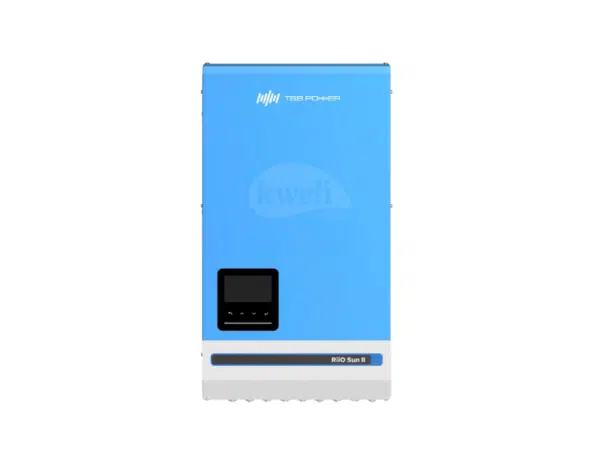

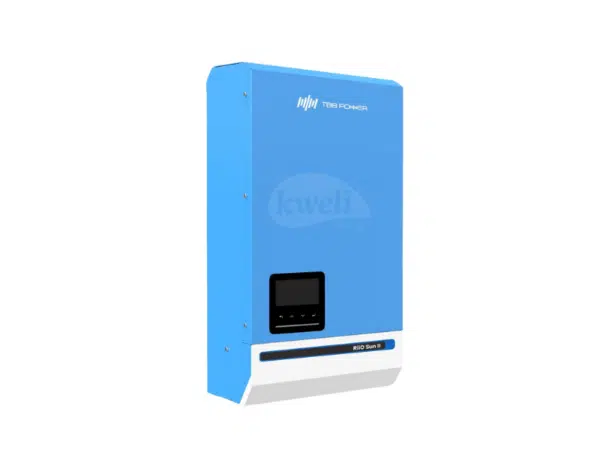

TBB RiiO Sun II 3kVA/3kW 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
-16%Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar InvertersTBB RiiO Sun II 3kVA/3kW 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
TBB RiiO Sun II 3kVA/3kW 24V All-in-One Solar Inverter
General Specifications:
- Nominal Battery Voltage: 24V
- Continuous Output Power: 3,000 VA (3kVA)
- Maximum Output Power: 3,000 W
- Peak Power: 6,000 W
- Surge Capacity: 200%
- AC Output Voltage: 230V ± 2%
- AC Output Frequency: 50 Hz / 60 Hz
- Harmonic Distortion: <2%
- Load Power Factor: 1.0
MPPT Solar Charge Controller:
- Maximum PV Open Circuit Voltage (Voc): 150V
- MPPT Voltage Range: 40–145V
- Maximum PV Input Current: 36A
- Maximum PV Short Circuit Current: 40A
- Maximum PV Input Power: 3,600 W
- MPPT Efficiency: 98%
Charger:
- Charge Voltage:
- Absorption: 28.8V
- Float: 27.6V
- Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
- Maximum AC Charge Current: 80A
- Temperature Compensation: Yes
Additional Features:
- Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
- Transfer Time: 4 ms (<15 ms in energy-saving mode).
- Efficiency: 91% inverter efficiency.
Design and Usability:
- Cooling: Forced fan
- Protection Index: IP21
- Dimensions: 499 x 272 x 144 mm
- Net Weight: 18 kg
- Operating Temperature: -20°C to 65°C
- Relative Humidity: 95% (non-condensing)
SKU: n/a -
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar Inverters
TBB RiiO Sun II 2kVA 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
-17%
Hybrid Inverters, Inverter-Chargers, Inverters, TBB Solar InvertersTBB RiiO Sun II 2kVA 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.
TBB RiiO Sun II 2kVA 24V All-in-One Solar Inverter
General Specifications:
- Nominal Battery Voltage: 24V
- Continuous Output Power: 2,000 VA (2kVA)
- Maximum Output Power: 2,000 W
- Peak Power: 6,000 W
- Surge Capacity: 300%
- AC Output Voltage: 220/230/240V ± 2%
- AC Output Frequency: 50/60 Hz ± 0.1%
- Harmonic Distortion: <2%
- Load Power Factor: 1.0
MPPT Solar Charge Controller:
- Maximum PV Open Circuit Voltage (Voc): 150V
- MPPT Voltage Range: 40–145V
- Maximum PV Input Current: 36A
- Maximum PV Short Circuit Current: 40A
- Maximum PV Input Power: 3,600 W
- MPPT Efficiency: 98%
Charger:
- Charge Voltage: Absorption: 28.8V, Float: 27.6V
- Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
- Maximum AC Charge Current: 80A
- Temperature Compensation: Yes
Additional Features:
- Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
- Transfer Time: 2ms (<15ms in weak AC source mode).
- Efficiency: 91% inverter efficiency.
Design and Usability:
- Cooling: Forced fan
- Protection Index: IP21
- Dimensions: 499 x 272 x 144 mm
- Net Weight: 18 kg
- Operating Temperature: -20°C to 65°C
- Relative Humidity: 95% (non-condensing)
SKU: n/a
