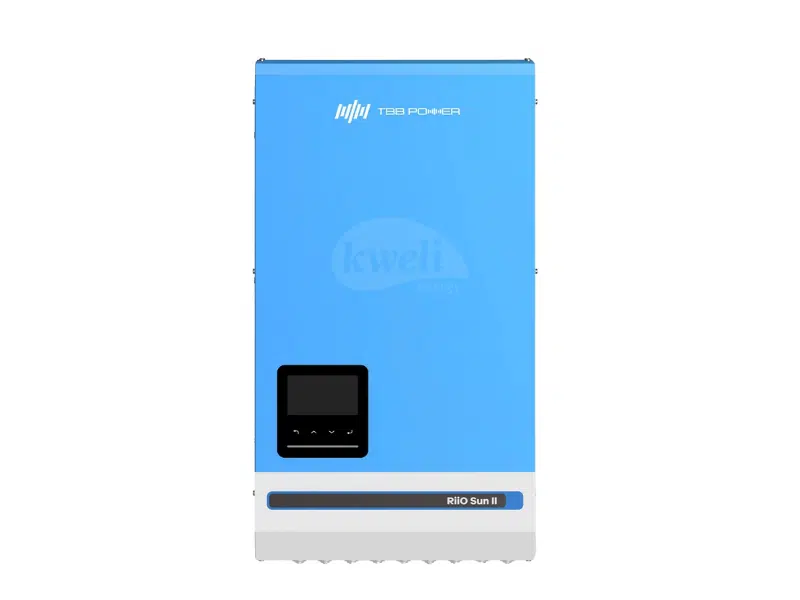

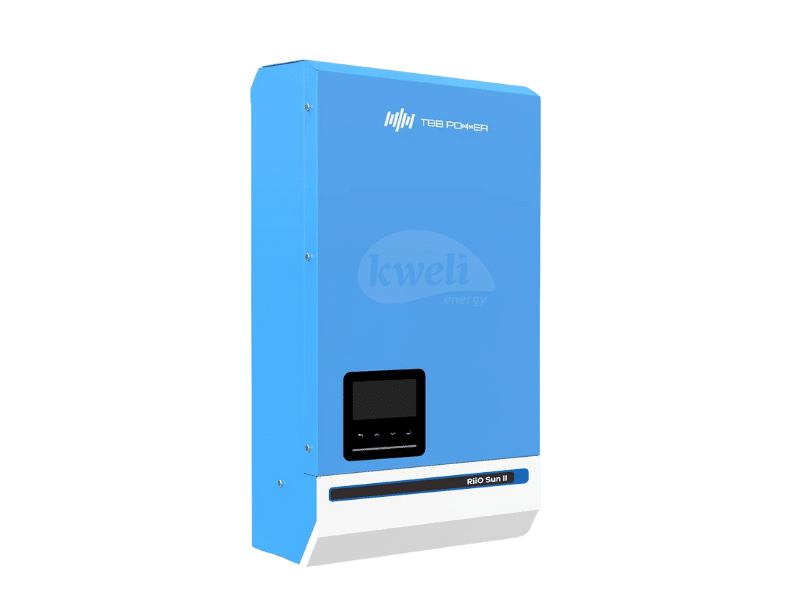

TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design

Original price was: Fr7,080,837.Current price is: Fr6,593,046.

TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter

General Specifications:

  • Nominal Battery Voltage: 48V
  • Continuous Output Power: 6,000 VA (6kVA)
  • Maximum Output Power: 6,000 W
  • Peak Power: 9,000 W (150%)
  • Surge Capacity: 18,000 W (300%)
  • AC Output Voltage: 220/230/240V ± 2%
  • AC Output Frequency: 50/60 Hz ± 0.1%
  • Harmonic Distortion: <2%
  • Load Power Factor: 1.0

MPPT Solar Charge Controller:

  • Maximum PV Open Circuit Voltage (Voc): 250V
  • MPPT Voltage Range: 120–250V
  • Number of MPPT Trackers: 2
  • Maximum PV Input Current per Tracker: 36A
  • Maximum PV Short Circuit Current per Tracker: 40A
  • Maximum PV Input Power: 8,800 W (4,400 W per tracker)
  • MPPT Efficiency: 98%

Charger:

  • Charge Voltage: Absorption: 57.6V, Float: 55.2V
  • Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
  • Maximum AC Charge Current: 100A
  • Temperature Compensation: Yes

Additional Features:

  • Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
  • Transfer Time: 2ms (<15ms in weak AC source mode).
  • Efficiency: 94% inverter efficiency.

Design and Usability:

  • Cooling: Forced fan
  • Protection Index: IP21
  • Dimensions: 570 x 310 x 154 mm
  • Net Weight: 25 kg
  • Operating Temperature: -20°C to 65°C
  • Relative Humidity: 95% (non-condensing)



Categories , , ,
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter

Additional information

Weight 25 kg

Brand

TBB Power

Founded in 2007 and headquartered in Xiamen, China, TBB Power is a globally recognized brand specializing in advanced power conversion and energy management systems. With over 15 years of experience, TBB Power offers a comprehensive range of solutions for residential, commercial, and industrial energy needs, serving clients across more than 50 countries.

TBB Power offers a versatile product range designed to meet diverse energy needs, including advanced hybrid inverters that seamlessly integrate solar, grid, and generator power for uninterrupted supply; high-performance MPPT solar charge controllers to maximise solar energy harvesting; and reliable energy storage systems that ensure efficient power usage and 24/7 availability. Whether for off-grid, hybrid, or backup power applications, TBB Power's solutions are built to deliver sustainability, efficiency, and reliability.

TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design Hybrid Inverters 4
